Champion field, offshore Brunei. Many crossing faults and several large growth faults in deltaic sediments. The reconstruction gives a clear view of the stratigraphic variation across the section. In the upper part there are large unconformities in a hinge line over the deformed clay core in the lower part. Data from S.T. Sandal (1996): The Geology and Hydrocarbon Resources of Negara Brunei Darussalam. ISBN 99917-900-0-4.
Notes: workflow example with six steps. Interpretation starts with the faults on the ‘easy’ left side of the structure. Then goes to the right side where correlation also is fairly ‘easy’. The middle, ‘complex’ part is then attacked from both sides. See intermediate steps below.
Brunei, Champion original
Unfaulted on both sides

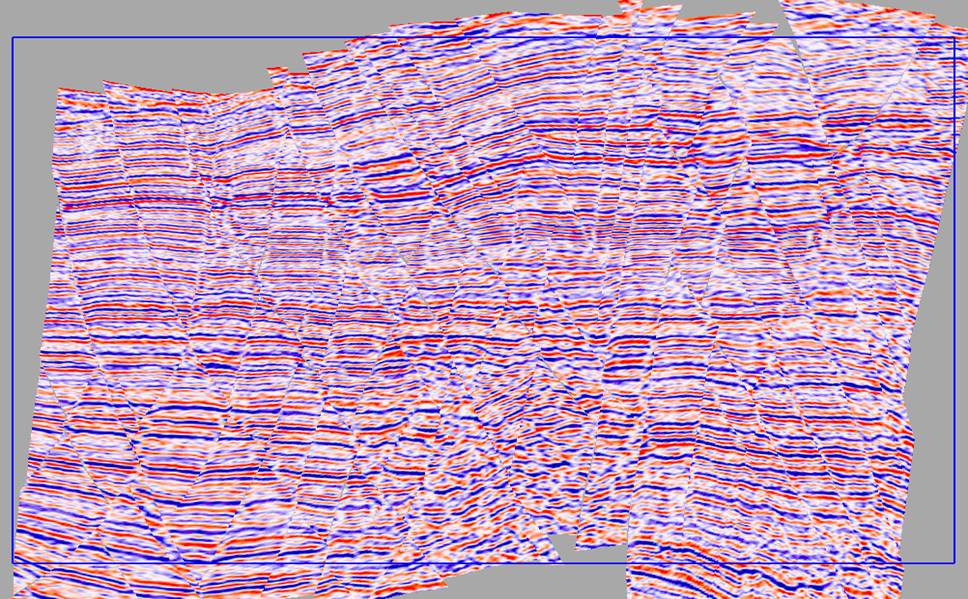

Unfaulted and unfolded

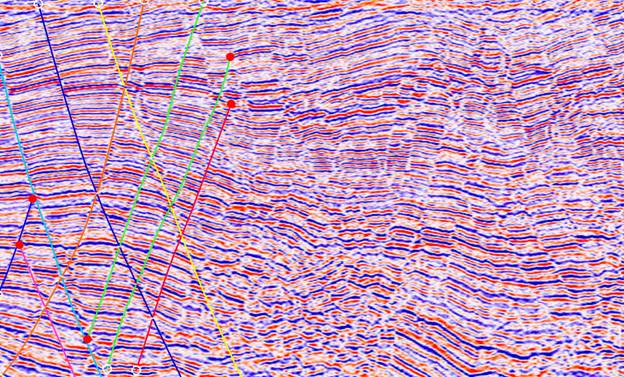

Step 1. ‘Easy’ left side, original faults without offset.

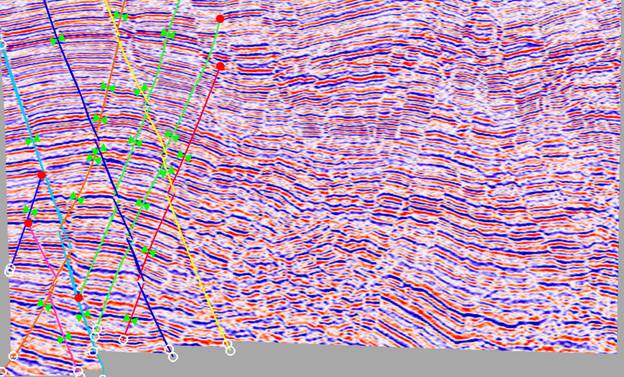

Step 2. ‘Easy’ left side, unfaulted
Step 3. ‘Easy’ right side, original faults without offset.
Step 4. ‘Easy’ right side, unfaulted

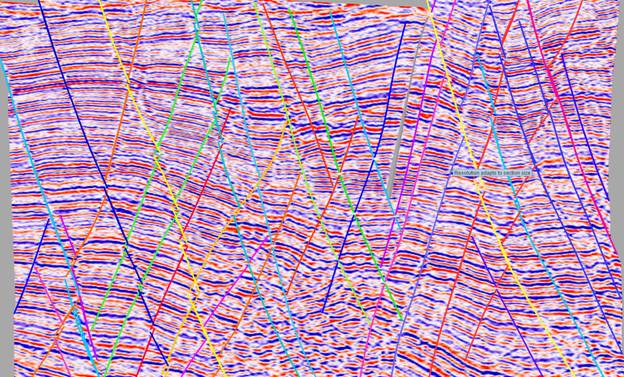

Step 5. Interpreting faults in the middle part
Step 6. Unfaulting all faults
